DESIGN SERVICE CONDITIONS

Sertco Industries Model 98 Series compressors are designed to handle a wide variety of conditions in wellhead compression. Specific applications are designed using known well data such as suction and discharge pressures, suction temperatures, the anticipated amount of fluids and desired gas flow.

Scrubber / Blowcase Manufactured by GSM

  • ASME carbon steel code stamp vessel
  • Combination scrubber/blowcase handling up to 30 BPD fluids
  • Mesh pad type elements (304SS) installed
  • High fluid level shut-down switch
  • Fluid level sight glasses
  • Automated dump valve system
  • Manual drain valve
  • Heat traced skirt section

PROCESS GAS COOLER

Gas Cooler Manufactured by Global Heat Transfer

Model CX30 - LP

Design Temp (Deg. F)

MAWP (psig)

200 409
250 402
300 375
350 302
400 238

Model CX30 - HP

Design Temp (Deg. F)

MAWP (psig)

200 750
250 675
300 550
350 400
400 325

UNIT ELECTRICAL
Wiring of all on-skid devices in conduit and junction boxes

CONTROL PANEL AND PACKAGE INSTRUMENTATION

Standard Panel - Annunciator Based

  • Console control panel
  • Panel instrumentation for all operating functions
  • Steel panel cabinet
  • Altronic DD-40NTV-0 annunciator
  • Engine JW Temperature swichgage

DISCRETE INPUTS - CLASS B1

  • Low pressure - suction
  • Low pressure - discharge
  • High pressure - suction
  • Loss of speed signal (integral to annunciator) - signal from magnetic pick-up

CLASS B2

  • Low pressure - engine oil
  • Low pressure - compressor oil

CLASS A

  • High pressure - discharge
  • High temp - compressor discharge
  • High temp - engine jacket water
  • High level - scrubber
  • Low level - engine oil
  • Low level - compressor oil
  • Emergency stop - local – push button on panel
  • Overspeed (integral to annunciator) - signal from magnetic pick-up

ADDITIONAL CONTROL PANEL OUTPUTS

  • Mode selector switch - idle / manual / auto
  • Manual speed potentiometer
  • Unit panel power switch - off/on - on panel insert.

PACKAGE FEATURES

  • 3/8" plate structural skid with 35 gallons fluid containment capacity
  • CNC machined skid brackets and details for perfect fit and interchangeability
  • Suction control valve with positive shut-off system when compressor shuts down
  • ASME code scrubber/blowcase with up to 25-35 bbl/day fluid handling capability with the optional ability to re-inject the fluids into the discharge gas stream. System designed for maximum efficiency adapting to fluctuating discharge pressure conditions with increased discharge pressure only when needed for the dump cycle. Engine jacket water heat trace system prevents liquid from freezing in blow case.
  • Process piping constructed with S 80 A106 grade B seamless carbon steel pipe with carbon content < .43%
    30, 60 and 90 day service schedule based on load, RPM and gas composition
  • 5 gallon oil day tank and automatic level controllers provides make-up oil to both driver and compressor.
  • Optional custom powder coated trailer with single axle electric brake system and integrated leveling jacks eliminates site preparation and provides an easy method of transporting compressor.
  • Optional low suction pressure make-up system prevents unnecessary shut-downs when gas flow rate fluctuates. System also prevents vacuum operation if desired.
  • Optional package bypass system allows gas production to continue if the compressor shuts down.

UNIT PAINT

  • Sertco HIS Industrial Coating paint details
  • Commercial Sandblast
  • Primer – 1 coat of red oxide high solid polyamide epoxy primer to 5.0 mils DFT
  • Top coat – 2 coats acrylic, aliphatic polyurethane in any color combination to 3-4 mils DFT

DRIVER OPTIONS

GM 1.6 Liter, Natural Gas Fueled Industrial Driver, 4 Cylinder, 23 HP Continuous @ 1800 RPM

General Data

  • Type: 1.6L L4
  • Displacement: 97.5 cid (1598 cc)
  • Compression Ratio: 9.4:1
  • Firing Order: 1-4-2-3
  • Oil Pan Capacity: 3.5 liters with filter
  • Valve Configuration: Single Overhead Cam
  • Valve Lifters: Hydraulic Tappet
  • Bore X Stroke: 3.11 in x 3.21 in (79.0mm x 81.50 mm)
  • Balance Method: External
  • Intake Manifold: PFI or LPG/NG
  • Fuel Types: Gasoline PFI, LPG, NG
  • Engine Rotation: Clockwise
  • Paint Protection: Painted
  • Shipping Weight: 224.4 (102 kg)

Materials

  • Block: Cast Iron
  • Cylinder Head: Aluminum
  • Intake Manifold: Cast Aluminum
  • Crankshaft: Cast Iron
  • Camshaft: Cast Iron
  • Pistons: High Silicon Content Aluminum
  • Exhaust Seat: Sintered Powdered Metal Insert
  • Gaskets: Non-Asbestos

GM 4.3 Liter, Natural Gas Fuels Industrial Driver, 6 cylinder, 55HP Continuous @ 1800 RPM

General Data

  • Type: 90° 4.3L V6
  • Displacement: 262 cid (4294.18 cc)
  • Compression Ratio: 9.4:1
  • Valve Configuration: Pushrod Actuated Overhead Valves
  • Manufactured: Tonawanda, New York
  • Valve Lifters: Hydraulic Roller
  • Bore X Stroke: 4.00 X 3.48 in (101.60 X 88.39 mm)
  • Main Bearing Caps: 2-Bolt
  • Balance Method: External
  • Intake Manifold: 2-BBL, IAFM
  • Rear Oil Seal: Full Circle
  • Fuel Delivery: Carburetted LPG, NG, SEFI Gasoline
  • Oil Pan Capacity: 4.5 qt with filter
  • Fuel Types: Gasoline, LPG or NG
  • Engine Rotation: Clockwise(from the front)
  • Paint Protection: Completely component painted
  • Horsepower: 135hp @ 3000 rpm (Gasoline)
  • Torque: 243 lb-ft @ 2200 rpm (Gasoline)
  • Shipping Weight: 434 lb (197 kg)

Materials

  • Block: Cast Iron
  • Cylinder Head: Cast Iron
  • Intake Manifold: Cast Iron
  • Crankshaft: Nodular Iron
  • Camshaft: Steel
  • Pistons: High Silicon Aluminum
  • Exhaust Seat: Induction Hardened

Equivalent Electric motors available upon request

Optional Features

  • Roof
  • Trailer
  • Dump to Discharge
  • C1D2
  • Common venting

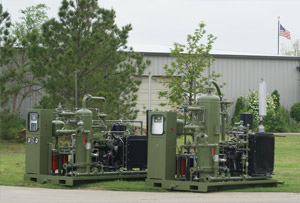

Model 98



Model 98 Information Request

*
*
*
*

Sertco Model 98 Compressor Features

  • Billet aluminum CNC machined head
  • Liquid cooling allows for up to 12 compression ratios
  • 4 cylinder arrangement provides high flow capacity, low vibration and even distribution of rod & crankshaft loads
  • Rotating assembly constructed from standard off-the-shelf components reduces initial and overhaul cost and provides for excellent availability
  • Cast aluminum alloy piston with chromoly compression rings
  • Forged steel connecting rods
  • Low friction, aluminum, high conformability main and rod bearings
  • Hoerbiger 42RX valves with 0.079" suction lift and 0.055" discharge lift reduces valve velocities providing minimal losses
  • All metallic valves and piston rings increase compressor ratio capability beyond typical reciprocating compressors
  • Standard size Viton o-ring seals throughout
  • Low (9%) fixed clearance billet aircraft aluminum head design allows for valve inspection and replacement without removal of piping
  • All fasteners are grade 8, coated for corrosion resistance
  • Inexpensive automotive oils acceptable (no need for synthetic)
  • Internal shaft driven oil pump
  • Tolerant of limited impurities in the gas stream
